Patch Test Products

IQ Ultimate™

IQ-UL

Uses:

The most advanced Patch Test Chamber



Patient friendly - permits normal daily activities
Based on the widely used leak free IQ Ultra™ closed-cell system



Features & Benefits

The IQ Ultimate™ patch test unit has important new features due to it’s new carrier tape. The test unit is based on the widely used IQ Ultra™. The three features below are unique for IQ Ultimate™.
  1. Water resistant - permits showering
  2. Elastic - allows normal daily activities
  3. Transparent - facilitates reading of the tests

Each chamber is made of additive-free polyethylene plastic foam with a filter paper incorporated.
The rim of each chamber has an adhesive layer to optimize adhesion to the skin and to eliminate leakage. This makes IQ Ultimate™ a closed-cell system enhancing occlusion and confining the test reaction within the chamber parameter. This feature is crucial in standardized patch testing which is based on the concept dose/area and the area has to be exactly defined.

The chambers are made of thin and soft polyethylene foam material to maximize patient comfort.

A hypoallergenic  transparent carrier film is used for the IQ Ultimate™.

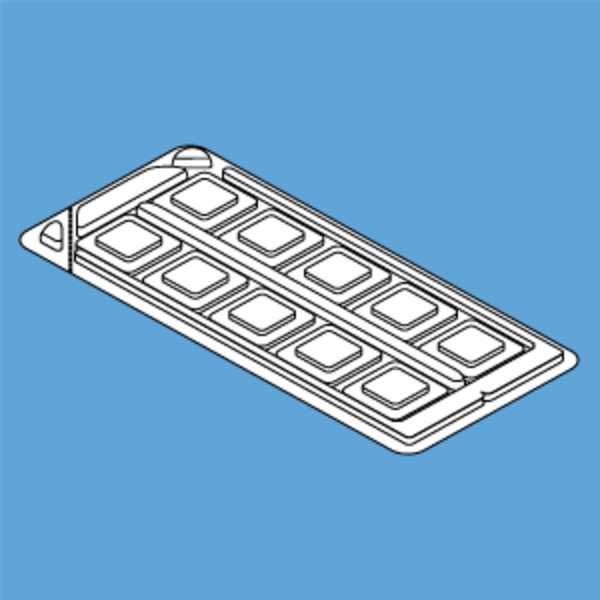

Each strip of 10 chambers of IQ Ultimate™ is attached to a protective plastic cover with corresponding compartments which makes it possible to re-attach the tape after advance filling of the chambers with the haptens.
  • The volume of the chamber is 32 µl and the inside area of the chamber is 64 mm2.
  • The width of the tape is 52 mm and the length is 118 mm.
  • Packaging & Service
  • The IQ Ultimate™ is supplied in cardboard boxes containing 100 units per box (100x10 chambers). A Reading Plate for IQ Ultra™ / IQ Ultimate™ is supplied in each box.
  • The IQ Ultimate™  is  available  worldwide through the extensive network of Chemo­technique Dia­­gnostics distributors.


Instructions

Intructions on the website are found here and they can be downloaded as a pdf from here



Patent information

In the following countries there is an existing patent:
USA: (10/501 555, 7 798 976, 21014925).
EPC:(03700668.1, 1 474 042, 21014926) in Belgium (BE), Denmark (DK), Finland (FI), France (FR), Germany (DE), Italy (IT), The Netherlands (NL), Spain (ES), Sweden (SE) and Great Britain (GB) (21038793-21038802).
